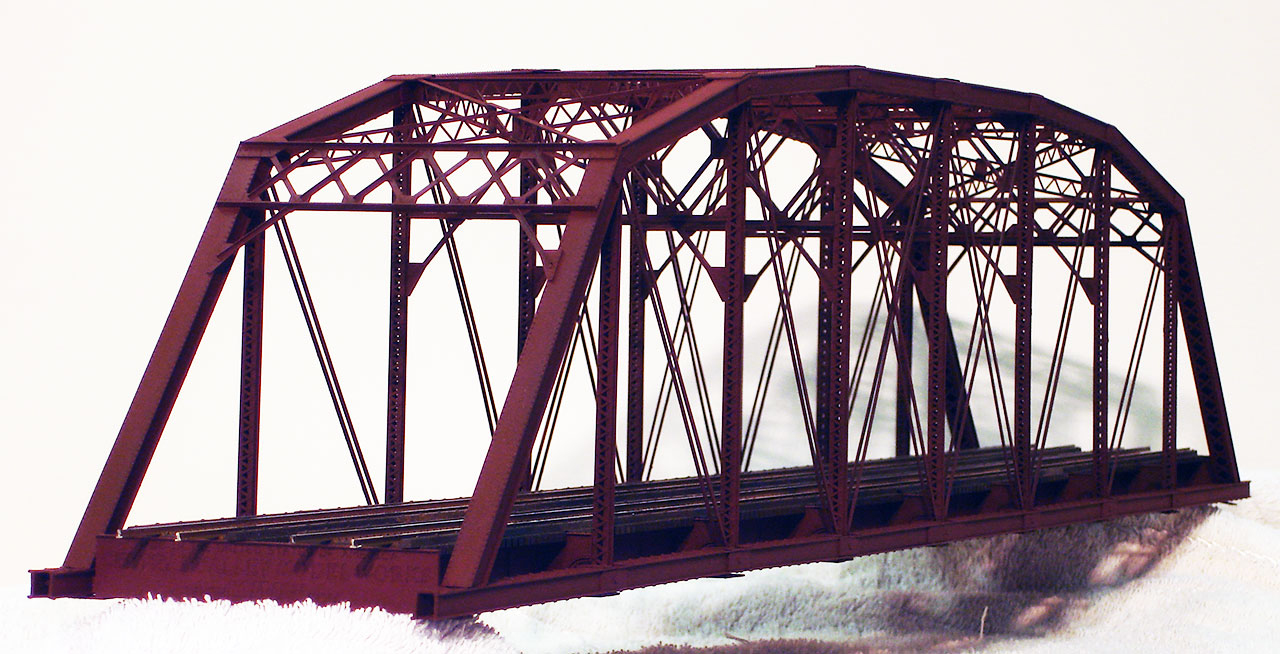

This HO scale Double Track Bridge is super detailed from a bygone era. Built in the early 1900,s, this bridge is a beautiful work of art and will great upon your diorama, layout, or mantle. The Kit is assembled much like her 150’ sister bridge, the classic 1902 Truss, except it's 50 feet longer and has double tracks including an assembly joint every 25 scale feet to improve versatility.

The Heavy Duty Laced girders are included with this kit, and also, can be purchased separately at your local dealer in a package of 30 box girder types for custom building many different steel structures and bridges Heavy Duty Laced girders 33 inch face

The model as built from the plans spans over 29 inches in length. Approximately 6 1/4 inches at its highest point and 4 3/4 inches wide. The track center line is 2.0 inches with over-head clearance well above 3 3/8 inches from a code 83 rail head. From rail-head to bottom of shoe is approximately 15/16 inches. The parts are injection molded of an impact grade of styrene plastic that is the same as used in the popular automobile and military hobby kits. Cementing / Gluing and painting requires the same materials and techniques in common use in the construction of those kits and the most popular model railroad kits.

Many components included are ideal for kit bashing and the scratch building of other bridges and steel structures. The parts are completely universal with the classic 1902 truss kit family as well.

The prototype bridge that the kit was copied from once span across an unknown river along with its twin sister. It is a very common and typical design that is used in North America and even other parts of the world. Some are still in use and many subtle variations are possible. Modifications in bracing, rail, guard-rails, walkways and railings, telegraph arms attached, and different portals are common. They are most often painted black, but there are examples of silver, gray, red oxide and green.
